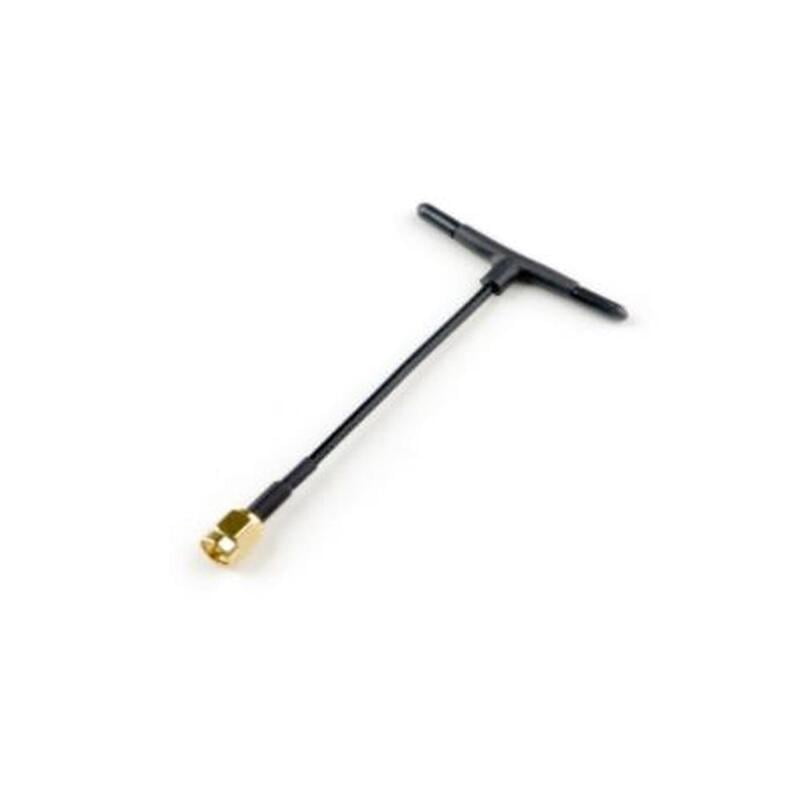

HAPPYMODEL 24TX80 ELRS ES24TX Antenna
₹209.00 ₹699.00
Out of stock
The HAPPYMODEL 24TX80 is a 2.4GHzSMA antenna specifically tuned for the ExpressLRS (ELRS) protocol. Designed to be compatible with ES24TX series modules, it provides an efficient and high-gain link, crucial for achieving the low-latency and long-range performance desired by FPV pilots.
Product Details
FEATURES
- High radiation efficiency, ensuring effective power transmission from TX.
- Ideal size and weight for micro and standard external TX modules.
- Durable construction for use with demanding FPV racing and freestyle.
Technical Details
- Frequency (MHz) 2400.0
- Efficiency (dBi) -0.67
- Gain (dBi) 1.72
- Efficiency (%) 85.65
- Directivity (dB) 4.40
- Peak Gain Position (Theta) 180.00
- Peak Gain Position (Phi) 359.00
- Efficiency ThetaPol (%) 24.35
- Efficiency PhiPol (%) 61.30
- Upper Hem. Efficiency (%) 40.55
- Lower Hem. Efficiency (%) 45.10
- Connector SMA
- Antenna width 50mm
- Antenna length 80mm
- Weight 5.3gram
Additional Details
- Manufacturer: HAPPYMODEL
- Brand: HAPPYMODEL
- Generic Name: 2.4GHz Transmitter Antenna, ExpressLRS Radio Antenna, FPV TX Module Antenna
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: ExpressLRS ES24TX and ES24TX Pro Transmitter Modules, 2.4GHz FPV Radio Control Systems
Package Details:
- Include
- HAPPYMODEL 24TX80 ELRS ES24TX Antenna
Frequently Asked Questions
Q1: Is this antenna compatible with the ExpressLRS 2.4GHz receiver (RX) modules?
ANS: No, this antenna is specifically designed for the transmitter (TX) module, such as the ES24TX, and features an SMA connector. Receiver antennas typically use a smaller U.FL/IPEX connector.
Q2: What is the connector type on this antenna?
ANS: The antenna uses a standard SMA connector, which is common for external radio transmitter modules.
Q3: Does this antenna improve the range of my ExpressLRS system?
ANS: With a gain of 1.72 dBi, this antenna is designed to provide a solid and reliable 2.4GHz link, contributing to the system's overall excellent long-range and low-latency performance when paired with a compatible ELRS TX module.
